REBTECH BLOCKCHAIN™ MOTHERBOARD

REBTECH 8GPU-MB, AMD A6-8500, 4G DDR3, 120G mSATA, 8 x USB/PCIEx

First mining motherboard with small All-In One design and USB integrated connection to the VGAs.

+No need for USB to PCI adapters

+Integrated AMD APU with low energy consumption

+Powered with 12V 6 PIN socket, no need for ATX PSUs

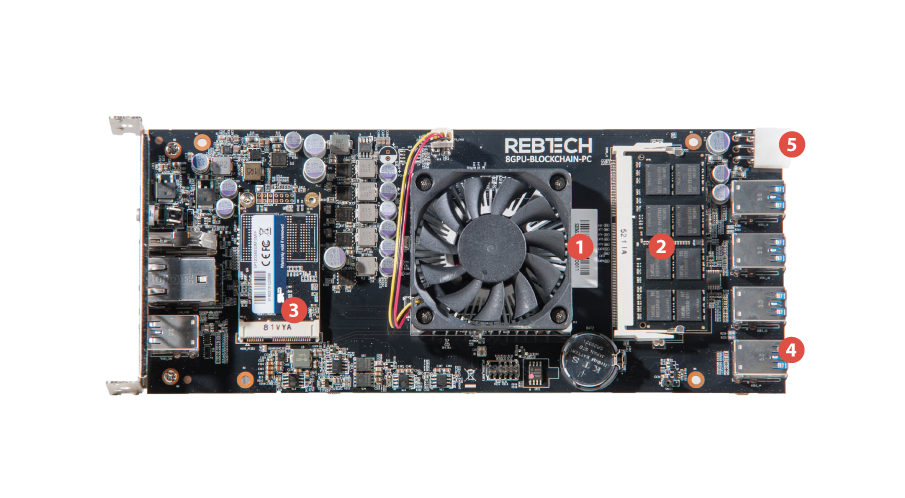

  1.    CPU AMD A6-8500P FP4 SOC

  2.    SO-DIMM 4G 1600MHz

  3.    SSD mDATA 120G

  4.    USB 3.0 Connection to the GPUs

  5.    12V 6PIN PCI Power socket

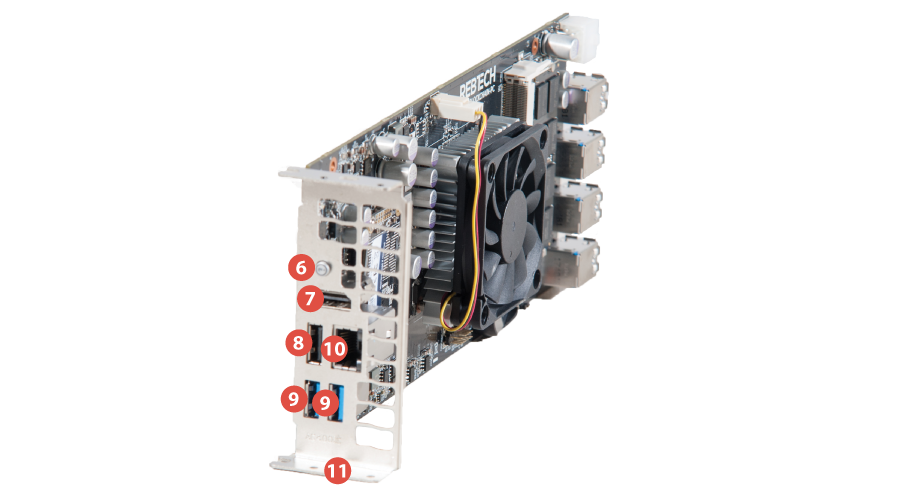

  1.    On/Off switch

  2.    HDMI Video out

  3.    USB 2.0 socket

  4.    2x USB 3.0 sockets

  5.    RJ45 Ethernet socket

  6.    Metal backet with two 3mm holes

  1.    On/Off switch

  2.    HDMI Video out

  3.    USB 2.0 socket

  4.    2x USB 3.0 sockets

  5.    RJ45 Ethernet socket

  6.    Metal backet with two 3mm holes

  1.    CPU AMD A6-8500P FP4 SOC

  2.    SO-DIMM 4G 1600MHz

  3.    SSD mDATA 120G

  4.    USB 3.0 Connection to the GPUs

  5.    12V 6PIN PCI Power socket

Downloads:

BIOS REBTECH 8GPU PC
Motherboard BIOS Ver03
Click Here to Download

PRICE:

Click Here to Download
FOR CURRENT PRICE LIST PLEASE CONTACT: SALES@REBTECH.AI

SPECIFICATION

Form factor Mini PC, VGA dimensions
CPU/APU AMD A6-8500P FP4 SOC , Radeon R5 Embedded Graphics

15W TDP , 1.6Ghz , 1MB L2 Cache , 4 Cores

Memory 4G 1600MHz SO-DIMM DDR3 SILICONPOWER
Storage 120G mSATA M10 SILICONPOWER
Expansion slots 8 x PCIex via USB3.0 Connectors
LAN RJ45 10/100/1000 Controller
Power 12V 6PIN PCI socket
Video out HDMI 1.4
External I/O 1 x USB 2.0, 2 x USB 3.0
Power 12V 6PIN PCI socket
Dimensions L: 250mm, W: 40mm, H: 100mm
OS Support Windows® 7 32/64 bit , Windows® 8.1 64 bit

Windows® 10 64 bit , Linux Closed Source 64 bit ,

Linux Open Source 64 bit

Warranty 3 Months
